Adding new Ore to Modular Miner

The DataAsset

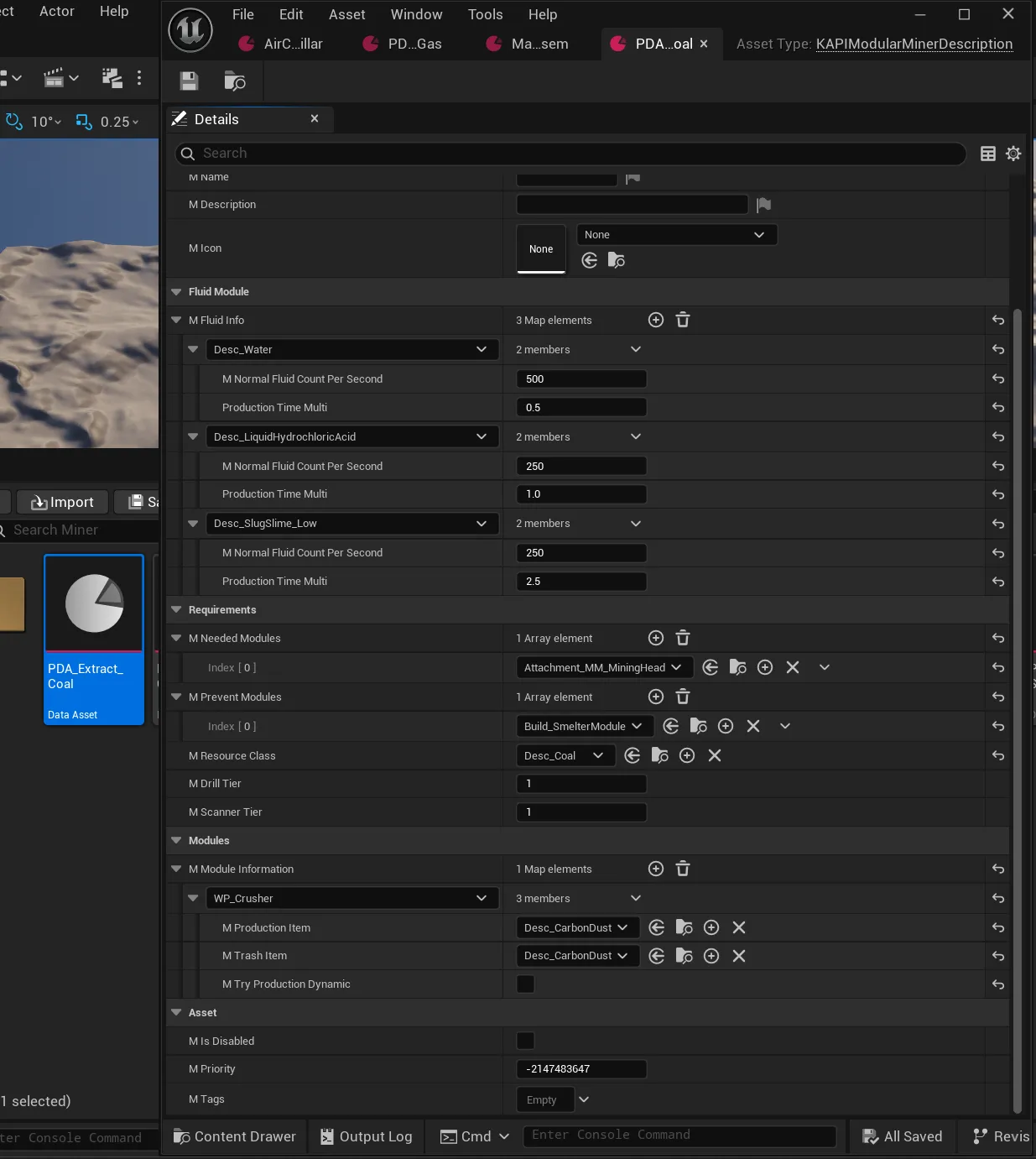

For adding new Ore to the Modular Miner in Satisfactory Plus, you need to create a new DataAsset of type KAPIModularMinerDescription the header can be found HERE.

Properties

Property	Type	Description
mRarityText	FText	The UI text shown for the rarity of the ore.
mFoundText	FText	The UI text shown when the ore is found.
mNodeScreenshot	TObjectPtr<UTexture2D>	The UI screenshot of the ore node.
mIsFallbackDescriptor	bool	Marks this entry as the fallback descriptor.
mFluidInfo	TMap<TSubclassOf<UFGItemDescriptor>, FKAPIMinerInfoFluids>	Per-item fluid production settings for fluid modules, see FKAPIMinerInfoFluids below.
mNeededModules	TArray<TSubclassOf<UKAPIModularAttachmentDescriptor>>	The attachment modules that must be installed for this ore to be minable.
mPreventModules	TArray<TSubclassOf<AFGBuildable>>	The buildable modules that, if installed, prevent this ore from being minable.
mModuleInformation	TMap<TSubclassOf<UKAPIWasteProducerType>, FKAPIModuleItems>	Maps a waste-producer module type to the items it produces for this ore, see FKAPIModuleItems below.
mResourceClass	TSubclassOf<UFGResourceDescriptor>	The ore resource this entry applies to.
mDrillTier	int	The minimum drill tier required to mine this ore.

Inherited from KAPIDataAssetBase

Every KAPI DataAsset also carries these:

Property	Type	Description
mName	FText	Display name of the asset.
mDescription	FText	Description of the asset.
mIcon	TObjectPtr<UTexture2D>	Icon of the asset.
mIsDisabled	bool	When true the asset is ignored entirely. The KMods.Disabled gameplay tag does the same.
mPriority	int	Rank used to resolve duplicates. Defaults to -MAX_int32, i.e. the lowest possible ranking.
mTags	FGameplayTagContainer	Gameplay tags of the asset.

FKAPIModuleItems

Property	Type	Description
mProductionItem	TSubclassOf<UFGItemDescriptor>	The item produced by this module.
mTrashItem	TSubclassOf<UFGItemDescriptor>	The item produced as waste by this module.

FKAPIMinerInfoFluids

Property	Type	Description
mNormalFluidCountPerSecond	int	Fluid consumed per second while the miner runs, in internal units (1000 = 1 m³).
ProductionTimeMulti	float	Speed bonus this fluid grants. Added to the production buff, so a higher value mines faster.

The miner buffers the fluid in its input slot and drains mNormalFluidCountPerSecond * <node purity multiplier> every second. If the buffer cannot cover a cycle the extraction stops until it refills, so the fluid is an input, never an output.

ProductionTimeMulti feeds the same buff sum as the module bonuses:

cycle time = 2s / (purity multiplier + ProductionTimeMulti + module bonuses - module maluses)

At normal purity and with no other modules that is 2 / (1 + ProductionTimeMulti) seconds per cycle.

Required vs. optional fluids

Listing a fluid in mFluidInfo only makes it accepted. Whether the fluid module is mandatory is decided solely by mNeededModules:

mNeededModules contains the fluid attachment	Behaviour
No	The ore mines dry; every fluid in mFluidInfo is an optional speed boost.
Yes	The ore cannot be mined at all without a fluid module and one of its fluids.

AKLMMBuildableMiner::HasAllNeededModules enforces this at runtime: the miner refuses to produce until every entry of mNeededModules is attached. The wiki export follows the same rule — a fluid-gated ore has no plain “extract <ore>” recipe, only its per-fluid recipes.

In the shipped SF+ data, Coal accepts water as an optional boost, while Sulfur, Time Crystal and Uranium are fluid-gated.

Notes

• The drill/mining head attachment belongs in mNeededModules for every ore. It is the one entry that does not gate the ore, because no ore can be mined without it anyway.
• mScannerTier and FKAPIModuleItems.mTryProductionDynamic have no usage yet and may be removed in the future.
