Adding new Recipes to Filtrator

The DataAsset

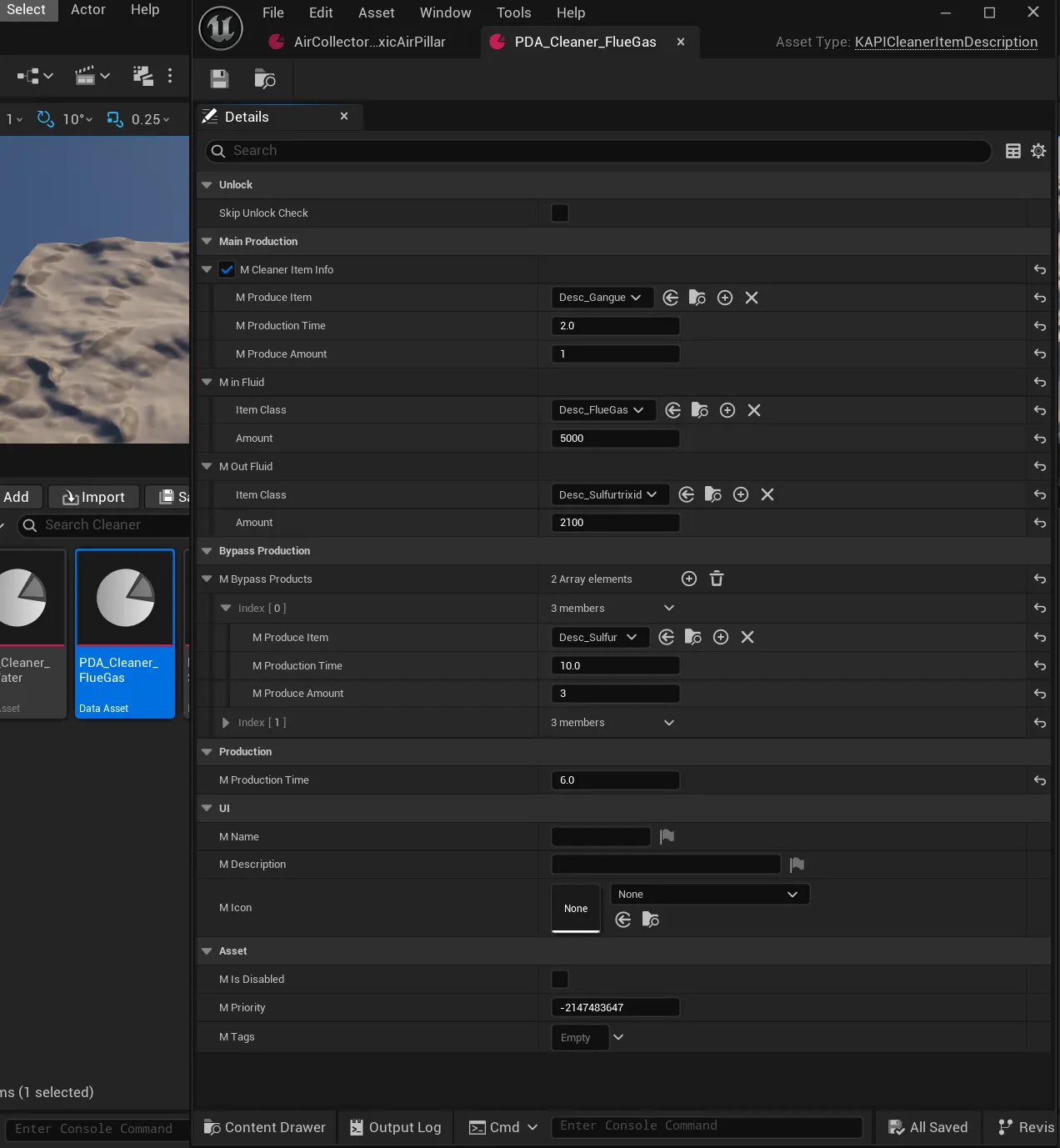

For adding new Recipes to the Filtrator (internally named “Cleaner” in KAPI), you need to create a new DataAsset of type KAPICleanerItemDescription the header can be found HERE.

Properties

Property	Type	Description
bSkipUnlockCheck	bool	Skip the unlock check for this recipe. The recipe is unlocked by default if true.
mCleanerItemInfo	FKAPICleanerInfo	The extra item consumed alongside the main recipe, when a cleaner item is needed.
mBypassProducts	TArray<FKAPICleanerInfo>	Alternate outputs produced without going through the main fluid recipe.
mProductionTime	float	The production time of the main recipe, in seconds.
mInFluid	FItemAmount	The input fluid item and amount consumed by the main recipe.
mOutFluid	FItemAmount	The output fluid item and amount produced by the main recipe.

FKAPICleanerInfo

Field	Type	Description
mProduceItem	TSubclassOf<UFGItemDescriptor>	The item class produced.
mProductionTime	float	The production time for this item, in seconds.
mProduceAmount	int	The amount of the item produced.

Notes

• Whether a cleaner item is required is determined by CleanerItemNeeded(). When needed, mCleanerItemInfo describes the additional item consumed alongside mInFluid to produce mOutFluid.
• mBypassProducts is a separate list of FKAPICleanerInfo entries produced without going through the main mInFluid → mOutFluid recipe.
